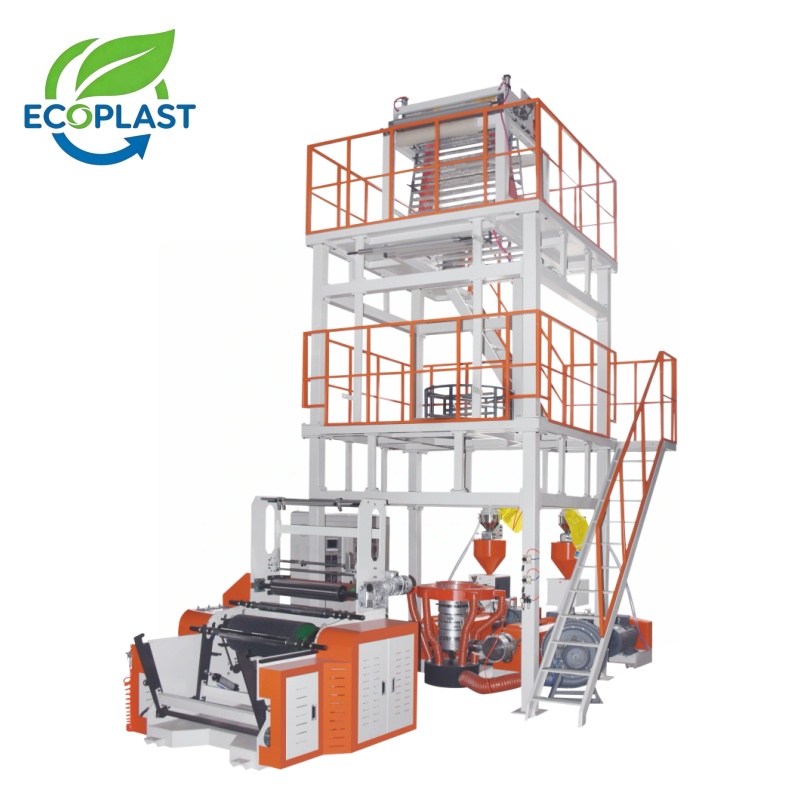

- The main extruder is equipped with a high-speed alloy screw, a 300G automatic vacuum auto-loader for feeding, and an automatic gravimetric dosing control system.
- The die head is equipped with an automatic rotation device, specifically configured for LDPE.
- The cooling air ring features a dedicated dual-lip design.
- The winder is controlled by a PLC touch screen and is equipped with a fully automatic cutting and winding device.
|
Model |
SJ50x2-700H |
SJ55/50-900H |
SJ55/55-1100H |
SJ60/55-1300H |
|
Screw diameter |
Φ50mm×2 |
Φ55mm+50mm |
Φ55mm×2 |
Φ55mm+60mm |
|
L/D ratio |
30:1 |
30:1 |
30:1 |
30:1 |
|
Output capacity |
60-80kg/h |
70-100kg/h |
80-120kg/h |
90-150kg/h |
|
Film width |
100-600mm |
200-800mm |
300-1000mm |
600-1200mm |
|
Film thickness |
0.01-0.08mm |
0.01-0.08mm |
0.01-0.08mm |
0.01-0.08mm |
|
Main motor |
22KW×2 |
30KW+22KW |
30KW×2 |
30KW+37KW |
|
Total power |
85KW |
100KW |
120KW |
130KW |
|
Voltage |
380V, 50-60HZ, 3phase
|
|||
|
Die head |
Φ60mm/150mm |
Φ80mm/200mm |
Φ100mm/220mm |
Φ120mm/250mm |
|
Gross weight |
4000KG |
4500KG |
5000KG |
5500KG |
|
Dimension |
6.0×4×6.2M |
6.5×4.5×6.2M |
7.5×4.8×6.5M |
8×5.2×6.8M |
