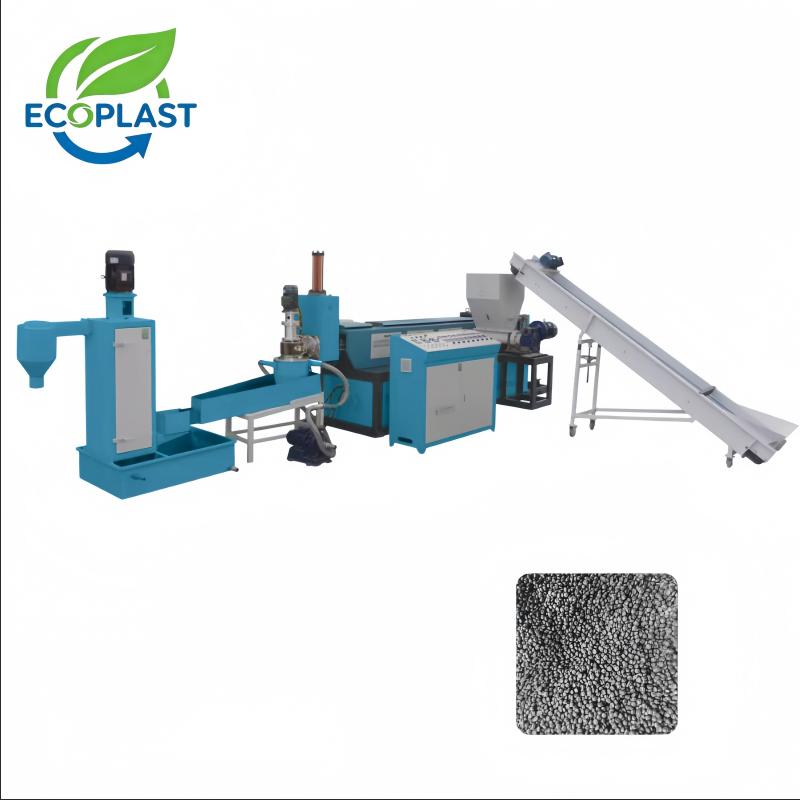

SJ120-200S Single Screw Water Ring Cutter PE Plastic Recycle Granulator Machine

The SJ120-200S Single Screw Water-Ring Plastic Granulator is an efficient and robust recycling solution engineered for processing PE films and flakes. Equipped with a highly durable alloy screw and a hydraulic quick-change screen filter, it guarantees continuous and stable operation. Its advanced water-ring hot cutting and variable frequency speed control system ensure the production of smooth, uniform, and premium-quality pellets. With an impressive output capacity ranging from 150kg/h to 350kg/h, this machine is the perfect investment to maximize your plastic recycling efficiency.
  • Detailed Description

Application

Recycle and process PE plastic film and flakes.

Features

  • Single-screw extrusion, alloy-dilution durable screw, hydraulic quick-change screen filter.
  • Uses water-ring hot cutting, variable frequency speed-controlled pelletizing, producing full and smooth pellets.
  • The screw press feeding device is mainly used for crushing films.
  • Conveyor belt speed-regulated feeding machine.

Main Specification

Model

YKSJ-120S

YKSJ-140S

YKSJ-160S

Screw diameter

Φ120mm

Φ140mm

Φ160mm

L/D ratio

20:1

20:1

20:1

Gear box

200#

250#

280#

Screw material

38CrMOLA

38CrMOLA

38CrMOLA

Main motor

37KW

45KW

75KW

Cutting motor power

2.2KW

2.2KW

3KW

Dehydration motor

5.5KW

5.5KW

5.5KW

Total power

80KW

95KW

160KW

Output capacity

150-200kg/h

150-250kg/h

300-350kg/h

Power supply

380V, 50-60HZ, 3phase





Weight

2500KG

3200KG

3900KG

Dimension

8.4x3.8x2.3M

9.8x4.8x2.3M

11.8x3.8x2.3M

Interested in the SJ100-200 Granulator?

Tell us your material type and target output — we will send a detailed quotation and machine specification sheet within 24 hours.
