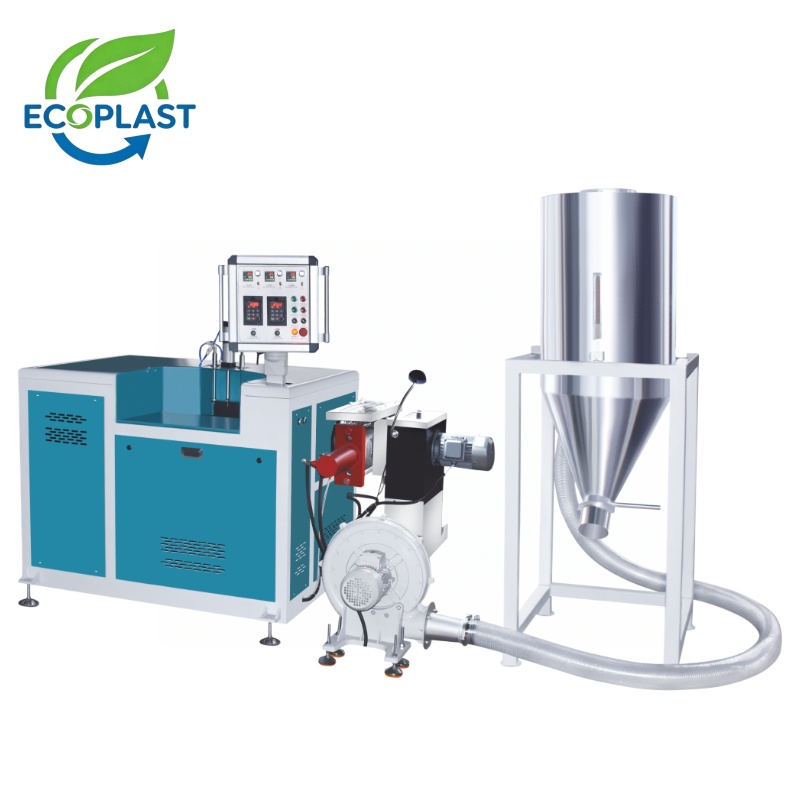

This machine is suitable for HDPE, LLDPE, LDPE, PP waste films and scraps.
The system employs a mesh-free filtration method with rotating blades for granulation.
Production process: Low temperature type. Pure physical low-temperature softening point granulation, lower than the melting point of the material, which will not cause secondary damage to the raw materials.
|
Parameter |
Specification |
|
Model |
YKSJ-75 |
|
Screw diameter |
Φ75mm |
|
Screw speed |
10-90r/min |
|
Gear box |
146# |
|
Screw material |
38CrMOLA |
|
Main motor |
18.5KW |
|
Cutting motor power |
0.75KW |
|
Total power |
25KW |
|
Power supply |
380V, 50-60HZ, 3Phase |
|
Output capacity |
50-70kg/h |
|
Weight |
1300KG |
|
Dimension |
2.26x1.5x2.3M |
