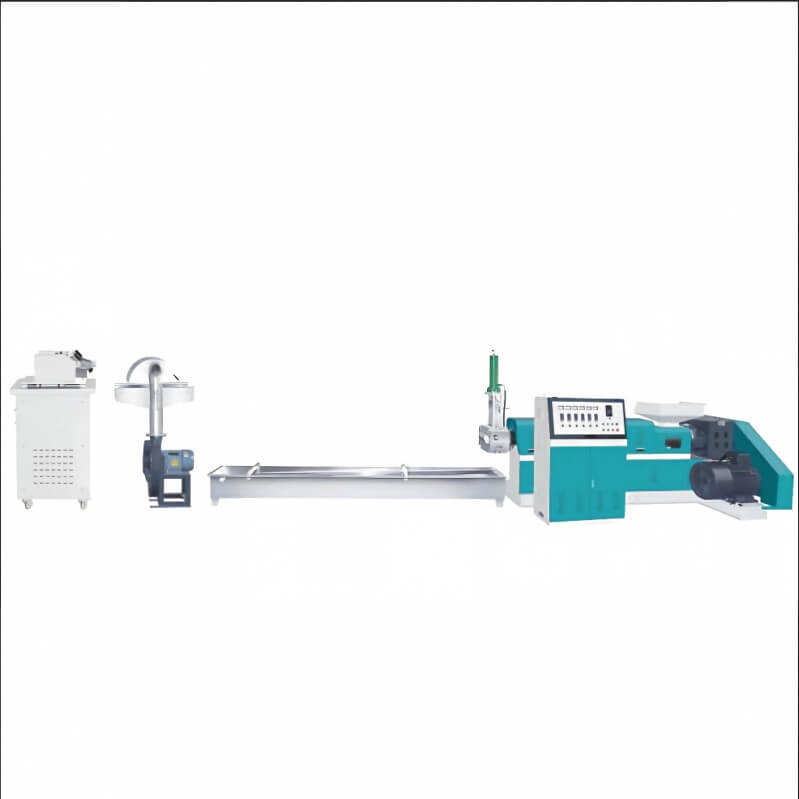

SJ-100-200 Single Screw Water Cooling PE PP EVA Plastic Recycle Granulator Machine

The SJ-100-200 Single Screw Water Cooling Plastic Recycle Granulator is a highly efficient solution engineered for processing various plastic films and flakes, including HDPE, LDPE, EVA, ABS, and PS. Built for durability and continuous operation, this machine features a robust 38CrMOLA wear-resistant screw and a hydraulic quick-change screen filter to minimize downtime. Equipped with an advanced water trough cooling system and frequency conversion cutting, it ensures uniform, high-quality plastic pellets. With a versatile output capacity ranging from 80kg/h to 300kg/h, it is the ideal upgrade for plastic recycling facilities looking to maximize yield and lower operational costs
  • Detailed Description

Application

Recycle and process HDPE, LDPE, LLDPE, MDPE, EVA, ABS, PS plastic film and flakes.

Features

  • Single screw extrusion, 38Cr desalination wear-resistant screw, hydraulic quick change screen filter.
  • Adopt water trough cooling and frequency conversion speed regulation cutting.

Optional Devices

  • Force feeder, conveyor belt, non-stop filter changer.

Main Specification

Model

YKSJ-100

YKSJ-120

YKSJ-140

YKSJ-150

Screw diameter

Φ100mm

Φ120mm

Φ140mm

Φ150mm

L/D ratio

20:1

20:1

20:1

20:1

Gear box

180#

200#

250#

280#

Screw material

38CrMOLA

38CrMOLA

38CrMOLA

38CrMOLA

Main motor

30KW

37KW

45KW

55KW

Cutting motor power

3KW

3KW

4KW

4KW

Total power

60KW

80KW

100KW

120KW

Output capacity

80-120kg/h

100-150kg/h

150-250kg/h

250-300kg/h

Power supply

380V, 50-60HZ, 3phase

Weight

2000KG

2600KG

3500KG

4500KG

Dimension

7.8x2.5x2.3M

9.5x3.8x2.3M

12x4.8x2.3M

13x5.8x2.3M

Interested in the SJ100-200 Granulator?

Tell us your material type and target output — we will send a detailed quotation and machine specification sheet within 24 hours.
