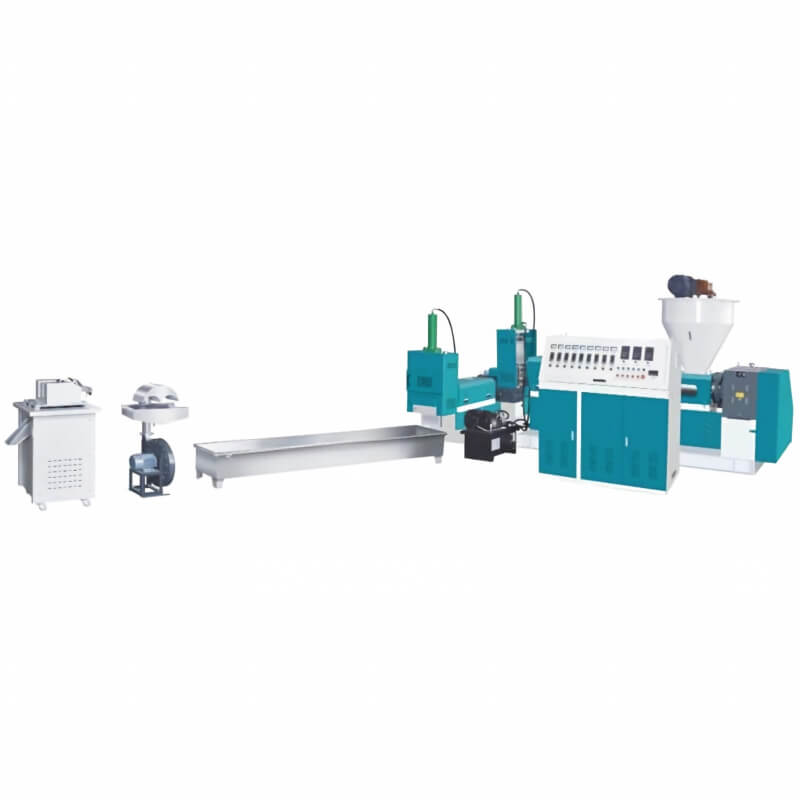

Recycle and process HDPE, LDPE, LLDPE, MDPE, EVA, ABS, PS plastic film and flakes.
Force feeder, conveyor belt, non-stop filter changer.
|
Model |
YKSJ120/110 |
YKSJ140/130 |
YKSJ150/140 |
|
Screw diameter |
120mm+110mm |
140mm+130mm |
150mm+140mm |
|
L/D ratio |
20:1 / 10:1 |
20:1 / 10:1 |
20:1 / 10:1 |
|
Gear box |
200# / 173# |
250# / 180# |
250# / 200# |
|
Screw material |
38CrMOLA |
38CrMOLA |
38CrMOLA |
|
Main motor |
37KW + 18.5KW |
45KW + 22KW |
55KW + 22KW |
|
Total power |
95KW |
128KW |
240KW |
|
Output capacity |
100-150kg/h |
120-200kg/h |
200-300kg/h |
|
Power supply |
380V, 50-60HZ, 3phase
|
||
|
Weight |
3500KG |
5000KG |
6000KG |
|
Dimension |
10.4x3.8x2.3M |
11.2x3.8x2.3M |
11.5x3.8x2.3M |
|
Model |
YKSJ160/150 |
YKSJ180/160 |
YKSJ200/180 |
|
Screw diameter |
160mm+150mm |
180mm+160mm |
200mm+180mm |
|
L/D ratio |
20:1 / 10:1 |
20:1 / 10:1 |
20:1 / 10:1 |
|
Gear box |
280# / 225# |
315# / 225# |
330# / 250# |
|
Screw material |
38CrMOLA |
38CrMOLA |
38CrMOLA |
|
Main motor |
75KW + 30KW |
90KW + 45KW |
132KW + 55KW |
|
Total power |
280KW |
340KW |
370KW |
|
Output capacity |
300-350kg/h |
300-400kg/h |
400-500kg/h |
|
Power supply |
380V, 50-60HZ, 3phase
|
||
|
Weight |
7500KG |
9000KG |
10000KG |
|
Dimension |
12.5x4.8x2.3M |
14x4.8x2.3M |
15x5.8x2.3M |
