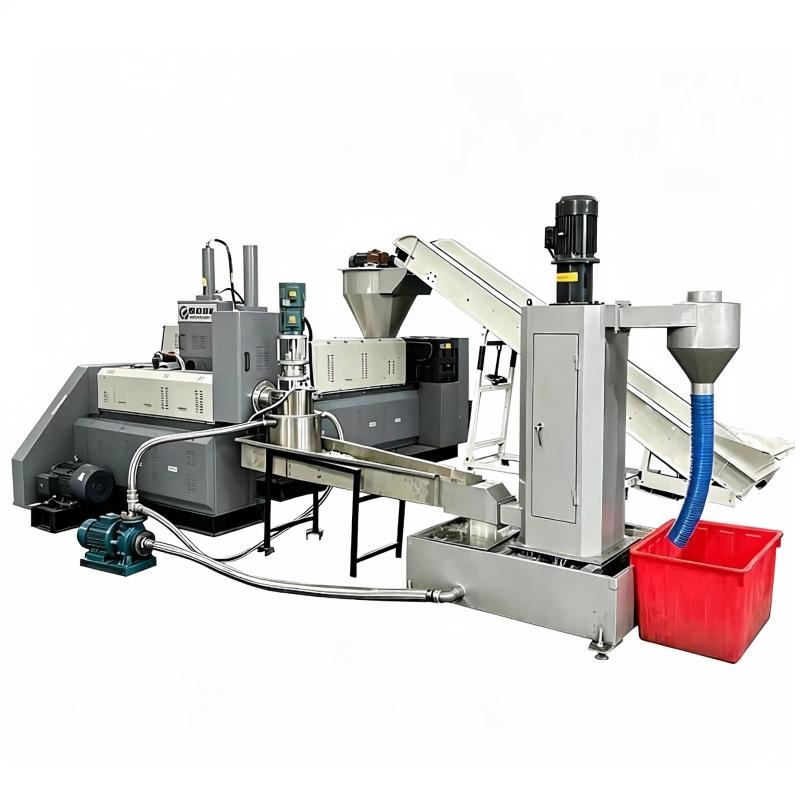

Twin-Screw Water-Ring Cutter Granulator Machine

Parameter / Model

YKSJ120/110S

YKSJ140/130S

YKSJ150/140S

Screw diameter

Φ120mm / 110mm

Φ140mm / 130mm

Φ150mm / 140mm

L/D ratio

20:1 / 10:1

20:1 / 10:1

20:1 / 10:1

Gear box

200# / 173#

250# / 180#

250# / 200#

Screw material

38CrMoAlA

38CrMoAlA

38CrMoAlA

Motor power

37KW + 18.5KW

45KW + 22KW

55KW + 22KW

Cutting motor power

2.2KW

2.2KW

3KW

Dehydration motor

5.5KW

5.5KW

5.5KW

Total power

115KW

128KW

178KW

Output capacity

150-200 kg/h

150-250 kg/h

200-300 kg/h

Power supply

380V 50-60HZ, 3-Phase

Weight

3700 KG

5200 KG

6200 KG

Dimension

11.4 x 3.8 x 2.3 M

12.2 x 4 x 2 M

13.4 x 4.5 x 2.3 M

Parameter / Model

YKSJ160/150S

YKSJ180/160S

YKSJ200/180S

Screw diameter

Φ160mm / 150mm

Φ180mm / 160mm

Φ200mm / 180mm

L/D ratio

20:1 / 10:1

20:1 / 10:1

20:1 / 10:1

Gear box

280# / 225#

315# / 250#

330# / 250#

Screw material

38CrMoAlA

38CrMoAlA

38CrMoAlA

Motor power

75KW + 30KW

90KW + 45KW

132KW + 55KW

Cutting motor power

3KW

5.5KW

5.5KW

Dehydration motor

5.5KW

7.5KW

7.5KW

Total power

215KW

255KW

305KW

Output capacity

300-350 kg/h

300-400 kg/h

400-500 kg/h

Power supply

380V 50-60HZ, 3-Phase

Weight

7700 KG

9200 KG

10200 KG

Dimension

14.4 x 4.8 x 2.3 M

15 x 5 x 2.3 M

15.5 x 5.5 x 2.3 M
