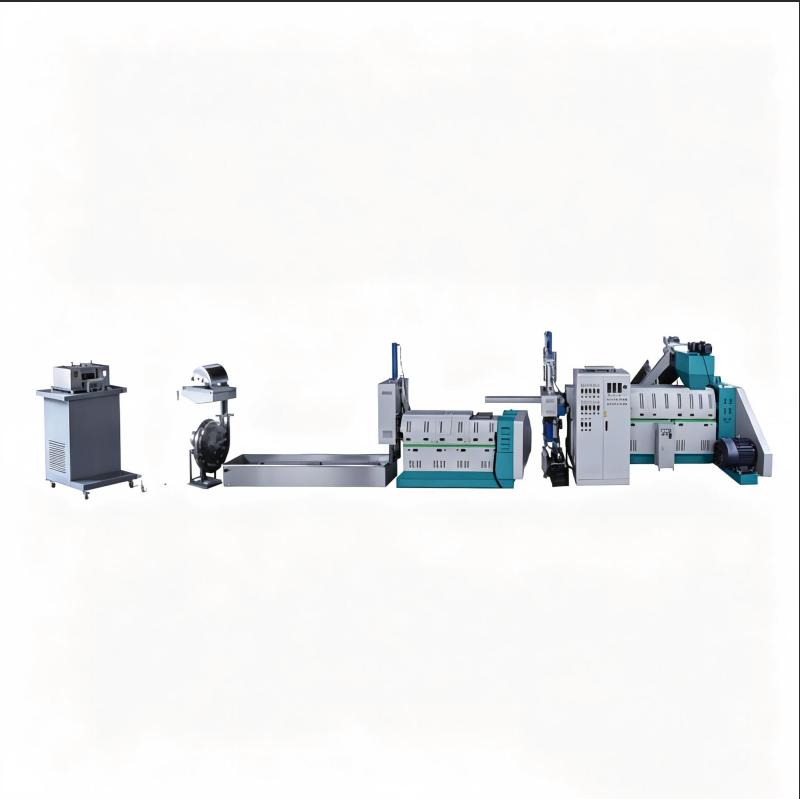

Recycle and process materials such as PE/PP films, woven bags, ABS/PS flakes into recycled plastic pellets.
|
Model |
YKSJ120/110P |
YKSJ140/130P |
YKSJ150/140P |
|
Screw diameter |
120mm + 110mm |
140mm + 130mm |
150mm + 140mm |
|
L/D ratio |
25:1 / 10:1 |
25:1 / 10:1 |
25:1 / 10:1 |
|
Gear box |
200# / 173# |
250# / 180# |
250# / 200# |
|
Screw material |
38CrMOLA |
38CrMOLA |
38CrMOLA |
|
Main motor |
37KW + 18.5KW |
45KW + 22KW |
55KW + 22KW |
|
Cutting motor power |
3KW |
4KW |
5.5KW |
|
Total power |
110KW |
128KW |
238KW |
|
Output capacity |
100-150kg/h |
150-200kg/h |
200-250kg/h |
|
Power supply |
380V 50-60HZ, 3Phase |
380V 50-60HZ, 3Phase |
380V 50-60HZ, 3Phase |
|
Weight |
4000KG |
5500KG |
6500KG |
|
Dimension |
9.5x4.5x2.3M |
13.2x4.8x2.3M |
13.4x5x2.3M |
|
Model |
YKSJ160/150P |
YKSJ180/160P |
YKSJ200/180P |
|
Screw diameter |
160mm + 150mm |
Φ180mm + 160mm |
Φ200 + 180mm |
|
L/D ratio |
25:1 / 10:1 |
25:1 / 10:1 |
25:1 / 10:1 |
|
Gear box |
280# / 225# |
315# / 225# |
330# / 250# |
|
Screw material |
38CrMOLA |
38CrMOLA |
38CrMOLA |
|
Main motor |
75KW + 30KW |
90KW + 45KW |
132KW + 55KW |
|
Cutting motor power |
5.5KW |
5.5KW |
7.5KW |
|
Total power |
275KW |
335KW |
370KW |
|
Output capacity |
300-350kg/h |
350-450kg/h |
400-500kg/h |
|
Power supply |
380V 50-60HZ, 3Phase |
380V 50-60HZ, 3Phase |
380V 50-60HZ, 3Phase |
|
Weight |
8000KG |
9500KG |
10500KG |
|
Dimension |
13.8x5.8x2.3M |
14.4x6.8x2.3M |
14.6x7.5x2.3M |
