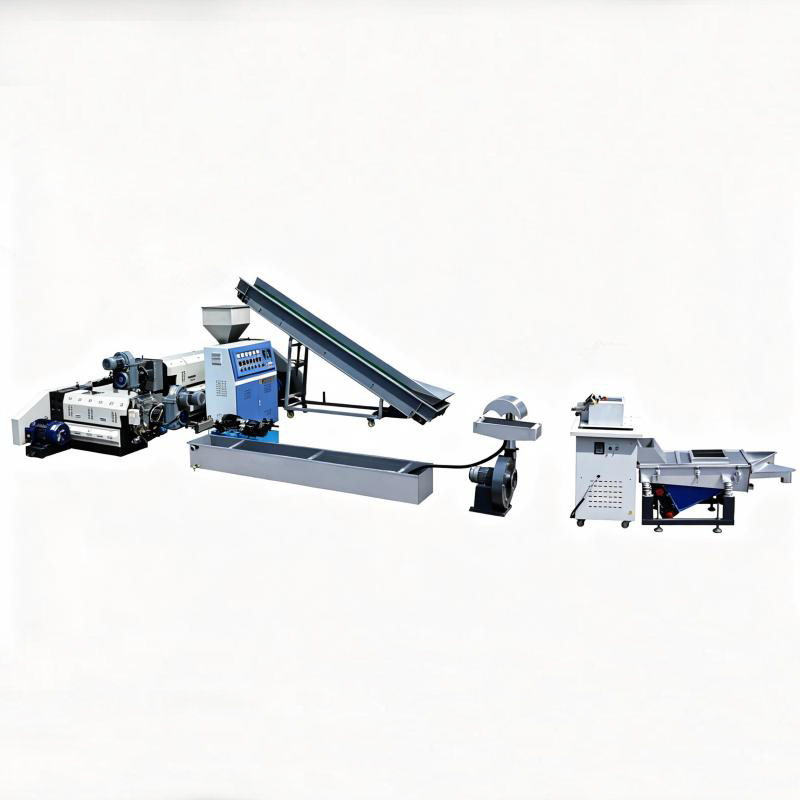

Model: YKSJ120-200W Double Stage Non-filter Automatic Waste Discharge Plastic Recycle Granulator Machine
Application: Recycle and process PE, PP, ABS, PS plastic film and flakes.
|
Model |
YKSJ120/110W |
YKSJ140/130W |
YKSJ150/140W |
|
Screw diameter |
Φ120mm+ 110mm |
Φ140mm+ 130mm |
φ150mm +140mm |
|
L/D ratio |
20:1/10:1 |
20:1/10:1 |
20:1/ 10:1 |
|
Gear box |
200# /173# |
250# /180# |
250# /200# |
|
Screw material |
38CrMOLA |
38CrMOLA |
38CrMOLA |
|
Main motor |
37KW+ 18.5KW |
45KW+ 22KW |
55KW+ 22KW |
|
Cutting motor power |
3KW |
4KW |
5.5KW |
|
Total power |
95KW |
128KW |
238KW |
|
Output capacity |
100-150kg/h |
120-200kg/h |
200-300kg/h |
|
Power supply |
380V 50-60HZ, 3Phase |
380V 50-60HZ, 3Phase |
380V 50-60HZ, 3Phase |
|
Weight |
3800KG |
5300KG |
6300KG |
|
Dimension |
12.4x3.8x2.3m |
13.2x4.8x2.3m |
13.4x3.8x2.3m |
|
Model |
YKSJ160/150W |
YKSJ180/160W |
YKSJ200/180W |
|
Screw diameter |
Φ160mm +150mm |
Φ180mm+ 160mm |
Φ200+180mm |
|
L/D ratio |
20:1/10:1 |
20:1/10:1 |
20:1/ 10:1 |
|
Gear box |
280# / 225# |
315# / 225# |
330# / 250# |
|
Screw material |
38CrMOLA |
38CrMOLA |
38CrMOLA |
|
Main motor |
75KW+30KW |
90KW+45KW |
132KW+ 55KW |
|
Cutting motor power |
5.5KW |
5.5KW |
7.5KW |
|
Total power |
275KW |
335KW |
370KW |
|
Output capacity |
300-350kg/h |
350-400kg/h |
400-500kg/h |
|
Power supply |
380V 50-60HZ, 3Phase |
380V 50-60HZ, 3Phase |
380V 50-60HZ, 3Phase |
|
Weight |
7800KG |
9000KG |
10000KG |
|
Dimension |
13.8x4.8x2.3m |
14.4x3.8x2.3m |
14.6x4.8x2.3m |
