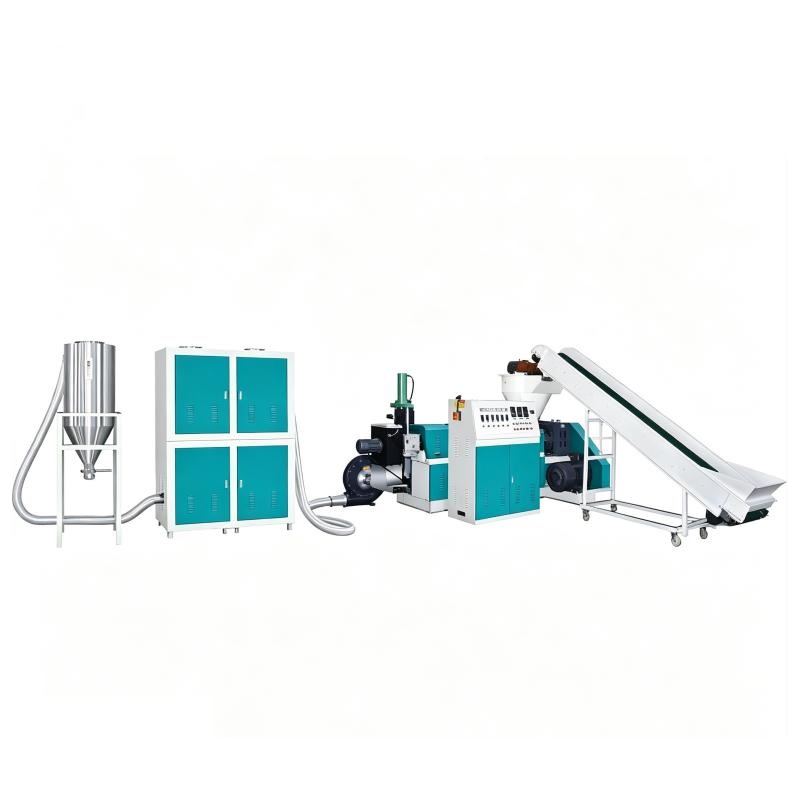

High Speed Single Screw Air Cooling PE Plastic Granulator Recycle Machine

Maximize your plastic recycling output with our High-Speed Air Cooling Granulator Machine, engineered specifically for PE plastic films, and crushed materials. Combining advanced hot-cutting technology with an efficient air-cooling system, this granulator ensures uniform pelletizing and superior cooling. Equipped with a hydraulic quick-changing screen and pneumatic pressure feeding, it minimizes downtime and maximizes operator safety. Available in output capacities ranging from 80kg/h to 200kg/h to perfectly scale with your production needs.
  • Detailed Description

High Speed Air Cooling PE Plastic Recycle Granulator Machine

Features

  • This machine is mainly suitable for PE plastic film and crushed plastic materials.
  • Adopt hot cutting and air cooling cutting method, equipped with hydraulic quick changing screen and pneumatic pressure feeding device.

Option Devices

  • Force feeder; auto conveyor belt; non-stop filter changer, metal detector device.

Main Specifications

Model

YKSJ-100F

YKSJ-120F

YKSJ-150F

Screw diameter

φ100mm

Φ120mm

Φ150mm

L/D ratio

20:1

20:1

20:1

Gear box

200#

225#

250#

Screw material

38CrMOLA

38CrMOLA

38CrMOLA

Main motor

37KW

45KW

55KW

Cutting motor power

1.5KW

1.5KW

3KW

Total power

55KW

65KW

90KW

Power supply

380V 50-60HZ, 3Phase

Output capacity

80-100kg/h

100-150kg/h

150-200kg/h

Weight

2500KG

3000KG

4000KG

Dimension

8x2.5x2.3M

8.5x4.8x2.3M

9x5.8x2.3M

Interested in the SJ100-200 Granulator?

Tell us your material type and target output — we will send a detailed quotation and machine specification sheet within 24 hours.
